首頁歐美晶振12.88667無源諧振器,25MHz晶振,GEYER格耶電子晶振

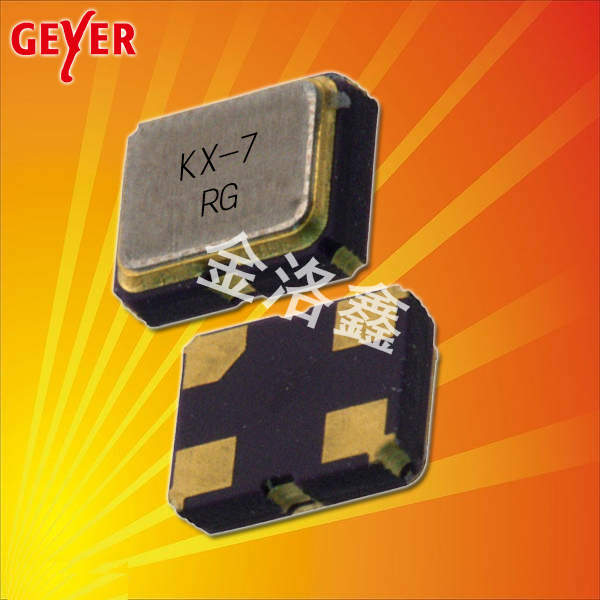

    12.88667無源諧振器,25MHz晶振,GEYER格耶電子晶振

  • 規格型號：48838828
  • 頻率：25MHz
  • 尺寸：3225mm
  • PDF
  • 產品描述：12.88667無源諧振器,25MHz晶振,GEYER格耶電子晶振,在路由器,交換機等網絡通信設備中,12.88667系列25MHz晶振發揮關鍵作用.通過精準的頻率控制,確保設備在數據交換過程中時鐘同步,減少數據包丟失與延遲.


12.88667無源諧振器,25MHz晶振,GEYER格耶電子晶振
針對智能家居,可穿戴設備等消費電子產品領域,該25MHz無源諧振器具備低功耗,小型化優勢,采用貼片封裝設計可靈活集成于緊湊PCB板中.其優異的相位噪聲性能（典型值≤-150dBc/Hz@1kHz偏移）,能減少信號干擾,為藍牙,Wi-Fi等無線模塊提供純凈時鐘支持,提升設備數據傳輸速率與穩定性,滿足消費電子對低功耗,高集成度的需求.


12.88667無源諧振器,25MHz晶振,GEYER格耶電子晶振
原廠型號 Originalmodel： 12.88667 品牌brand： GEYE石英晶體諧振器

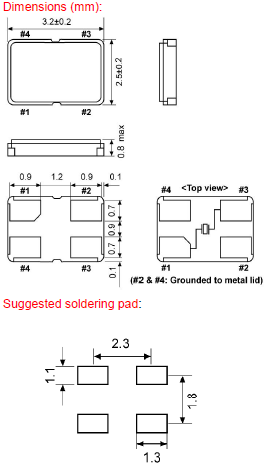

型號名稱 Modelname： KX-7 Size/Dimension尺寸 3225mm
Type系列： MHz Crystal 高度PackageHeight： 0.8mm
頻率 frequency： 25MHz 溫度OperatingTemperature -20~+70℃
Frequency Stability頻率穩定度  -  腳位Termination： 4Pad
frequencytolerance頻率容差 30PP 封裝類型PackageType： 4-smd
Loadcapacitance  負載電容 12pF 最小包裝數MPQ： 3000


12.88667無源諧振器,25MHz晶振,GEYER格耶電子晶振


12.88667無源諧振器,25MHz晶振,GEYER格耶電子晶振
12.87000  KX-327V 1.25 | 1.05 | 0.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87001  KX-327V 1.25 | 1.05 | 0.5 mm 32.768 kHz 9 pF ± 20 ppm
12.87002  KX-327V 1.25 | 1.05 | 0.5 mm 32.768 kHz 7 pF ± 20 ppm
12.87034  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 4 pF ± 20 ppm
12.87080  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87081  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 6 pF ± 20 ppm
12.87083  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 6 pF ± 20 ppm
12.87086  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 6 pF ± 10 ppm
12.87090  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 10 ppm
12.87095  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 10 ppm
12.87105  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 6 pF ± 10 ppm
12.87107  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87109  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12 pF ± 15 ppm
12.87110  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87111  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87112  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87113  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87114  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87115  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87116  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87118  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 6 pF ± 20 ppm
12.87119  KX-327S 8.2 | 3.8 | 2.5 mm 32.768 kHz 6 pF ± 20 ppm
12.87120  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87121  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87123  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 6 pF ± 30 ppm
12.87126  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87127  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 6 pF ± 30 ppm
12.87128  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 6 pF ± 20 ppm
12.87129  KX-327XS 4.95 | 1.82 | 0.96 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87130  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87131  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87132  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 20 ppm
12.87133  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87134  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 10 ppm
12.87135  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 20 ppm
12.87136  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87137  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 9 pF ± 20 ppm
12.87138  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87139  KX-327L 7.0 | 1.5 | 1.4 mm 32.768 kHz 7 pF ± 10 ppm
12.87143  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 20 ppm
12.87144  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 5.0 ppm
12.87145  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87146  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 10 ppm
12.87147  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 10 ppm
12.87148  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 20 ppm
12.87149  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 20 ppm
12.87150  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87151  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 9 pF ± 30 ppm
12.87152  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87153  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 7 pF ± 20 ppm
12.87155  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 30 ppm
12.87157  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87158  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 10 ppm
12.87159  KX-327NH 3.2 | 1.5 | 0.8 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87160  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 12.5 pF ± 20 ppm
12.87161  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 12.5 pF ± 5.0 ppm
12.87163  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 7 pF ± 20 ppm
12.87164  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 9 pF ± 30 ppm
12.87165  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 9 pF ± 20 ppm
12.87166  KX-327R 2.0 | 1.2 | 0.6 mm 32.768 kHz 12.5 pF ± 20 ppm
