    TSL22-H30HM33ST-32.768K-TR|低電壓晶振|Transko有源晶振|32.768K

  • 規格型號：93988190
  • 頻率：32.768K

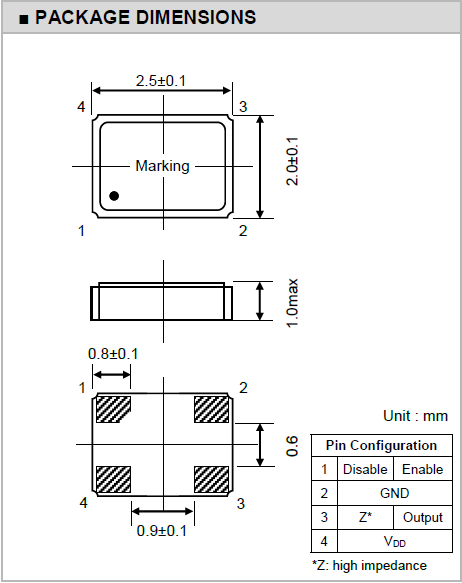

  • 尺寸：2520mm
  • PDF
  • 產品描述：TSL22-H30HM33ST-32.768K-TR|低電壓晶振|Transko有源晶振|32.768K，智能手表,手環,智能眼鏡等產品的RTC模塊,需要精準計時以實現鬧鐘,運動數據記錄,睡眠監測等功能


TSL22-H30HM33ST-32.768K-TR|低電壓晶振|Transko有源晶振|32.768K
作為T(mén)ransko有源晶振家族的代表性產品,TSL22-H30HM33ST-32.768K-TR依托品牌在頻率控制領域的深厚技術積累,以32.768KHz振蕩器經典標稱頻率為核心,融合有源晶振的獨立驅動優勢與低電壓設計,成為低功耗電子設備的理想頻率控制元件.型號中"TSL22"標識對應專屬電路方案,"TR"代表標準化封裝工藝,在保障32.768KHz頻率精準輸出的同時,通過Transko嚴苛的生產管控,確保產品性能一致性,無論是基礎時鐘信號供給,還是低功耗場景下的穩定運行,均能展現出"高精度+高可靠"的雙重優勢,是Transko晶振針對便攜設備,物聯網終端打造的標桿級晶振產品.


TSL22-H30HM33ST-32.768K-TR|低電壓晶振|Transko有源晶振|32.768K
原廠型號 Original model ： TSL22-H30HM33ST-32.768K-TR 品牌 brand ： Transko晶振
Manufacturer品牌 Transko晶振 Operating Temperature溫度 0º to 70ºC
Series型號 TSL22 Current - Supply (Max)  -
Type 類型 XO Package Height高度 1.0mm
Frequency 頻率 32.768K Termination  腳位 4 pads
輸出方式 Output： HCMOS Package Type  封裝類型 4-SMD
Voltage - Supply電壓 3.3V Packaging  包裝 Tape and Reel
Frequency Stability頻率穩定度 ± 30ppm  安裝方式 Installation ： Surface mount
Size / Dimension 尺寸 2520mm 最小包裝數 MPQ ： 3000


TSL22-H30HM33ST-32.768K-TR|低電壓晶振|Transko有源晶振|32.768K

TSL22-H30HM33ST-32.768K-TR|低電壓晶振|Transko有源晶振|32.768K
OCETGCJTNF-48.000000 Taitien OC XO (Standard) 48 MHz CMOS 3.3V ±50ppm
OXETDCJANF-0.032768 Taitien OX XO (Standard) 32.768 kHz CMOS 3.3V ±25ppm
OCETDLJANF-25.000000 Taitien OC XO (Standard) 25 MHz CMOS 3.3V ±25ppm
TZKTADSANF-26.000000 Taitien TZ TCXO 26 MHz Clipped Sine Wave 1.8V ±500ppb
TXEABLSANF-24.000000 Taitien TX VCTCXO 24 MHz Clipped Sine Wave 2.8V ~ 3.3V ±1ppm
TXEABLSANF-26.000000 Taitien TX VCTCXO 26 MHz Clipped Sine Wave 2.8V ~ 3.3V ±1ppm
TXKTPCSANF-32.000000 Taitien TX TCXO 32 MHz Clipped Sine Wave 1.8V ±1.5ppm
TXEAADSANF-20.000000 Taitien TX VCTCXO 20 MHz Clipped Sine Wave 2.8V ~ 3.3V ±500ppb
TXETALSANF-10.000000 Taitien TX TCXO 10 MHz Clipped Sine Wave 2.8V ~ 3.3V ±500ppb
TYETBCSANF-32.000000 Taitien TY TCXO 32 MHz Clipped Sine Wave 2.8V ~ 3.3V ±1ppm
TYETBLSANF-40.000000 Taitien TY TCXO 40 MHz Clipped Sine Wave 2.8V ~ 3.3V ±1ppm
TYEAPLSANF-40.000000 Taitien TY VCTCXO 40 MHz Clipped Sine Wave 2.8V ~ 3.3V ±1.5ppm
TYETACSANF-26.000000 Taitien TY TCXO 26 MHz Clipped Sine Wave 2.8V ~ 3.3V ±500ppb
TYEAACSANF-38.400000 Taitien TY VCTCXO 38.4 MHz Clipped Sine Wave 2.8V ~ 3.3V ±500ppb
VLCUWCWTNF-100.000000 Taitien VLCU VCXO 100 MHz Sine Wave 5V ±35ppm
TSEAALJANF-10.000000 Taitien TS VCTCXO 10 MHz CMOS 3.3V ±500ppb
TWETALJANF-40.000000 Taitien TW TCXO 40 MHz CMOS 3.3V ±500ppb
TWEAKLJANF-20.000000 Taitien TW VCTCXO 20 MHz CMOS 3.3V ±280ppb
TTETKLJANF-10.000000 Taitien TT TCXO 10 MHz CMOS 3.3V ±280ppb
TTEAKLJANF-10.000000 Taitien TT VCTCXO 10 MHz CMOS 3.3V ±280ppb
TTETKLSANF-10.000000 Taitien TT TCXO 10 MHz Clipped Sine Wave 3.3V ±280ppb
TSEATLJANF-10.000000 Taitien TS VCTCXO 10 MHz CMOS 3.3V ±4.6ppm
TWETMCJANF-10.000000 Taitien TW TCXO 10 MHz CMOS 3.3V ±100ppb
TTEAALJANF-50.000000 Taitien TT VCTCXO 50 MHz CMOS 3.3V ±500ppb
NNENCLJNNF-10.000000 Taitien NN OCXO 10 MHz CMOS 3.3V ±20ppb
NI-10M-2400 Taitien NI-10M-2400 OCXO 10 MHz LVTTL 5V ±3ppb
NI-10M-2403 Taitien NI-10M-2400 OCXO 10 MHz LVTTL 5V ±3ppb
NI-10M-2503 Taitien NI-10M-2500 OCXO 10 MHz Sine Wave 5V ±3ppb
NI-100M-2900 Taitien NI-100M-2900 OCXO 100 MHz Sine Wave 12V ±50ppb
NA-100M-6822 Taitien NA-100M-6800 OCXO 100 MHz Sine Wave 12V ±100ppb
OCKTGLJANF-0.032768 Taitien OC XO (Standard) 32.768 kHz CMOS 3.3V ±50ppm
OCETGLJTNF-100.000000 Taitien OC XO (Standard) 100 MHz CMOS 3.3V ±50ppm
TXETCLSANF-40.000000 Taitien TX TCXO 40 MHz Clipped Sine Wave 2.8V ~ 3.3V ±2ppm
TXETDDSANF-16.000000 Taitien TX TCXO 16 MHz Clipped Sine Wave 2.8V ~ 3.3V ±2.5ppm
TXETDCSANF-20.000000 Taitien TX TCXO 20 MHz Clipped Sine Wave 2.8V ~ 3.3V ±2.5ppm
TXETBLSANF-40.000000 Taitien TX TCXO 40 MHz Clipped Sine Wave 2.8V ~ 3.3V ±1ppm
TXEABDSANF-32.000000 Taitien TX VCTCXO 32 MHz Clipped Sine Wave 2.8V ~ 3.3V ±1ppm
TXETDDSANF-30.000000 Taitien TX TCXO 30 MHz Clipped Sine Wave 2.8V ~ 3.3V ±2.5ppm
TXETBLSANF-26.000000 Taitien TX TCXO 26 MHz Clipped Sine Wave 2.8V ~ 3.3V ±1ppm
TXEAPDSANF-19.200000 Taitien TX VCTCXO 19.2 MHz Clipped Sine Wave 2.8V ~ 3.3V ±1.5ppm
TXEAPLSANF-40.000000 Taitien TX VCTCXO 40 MHz Clipped Sine Wave 2.8V ~ 3.3V ±1.5ppm
TXEACDSANF-26.000000 Taitien TX VCTCXO 26 MHz Clipped Sine Wave 2.8V ~ 3.3V ±2ppm
TXEACDSANF-20.000000 Taitien TX VCTCXO 20 MHz Clipped Sine Wave 2.8V ~ 3.3V ±2ppm
TXETBLSANF-27.000000 Taitien TX TCXO 27 MHz Clipped Sine Wave 2.8V ~ 3.3V ±1ppm
TXETBLSANF-19.200000 Taitien TX TCXO 19.2 MHz Clipped Sine Wave 2.8V ~ 3.3V ±1ppm
TXETALSANF-26.000000 Taitien TX TCXO 26 MHz Clipped Sine Wave 2.8V ~ 3.3V ±500ppb
TXEAACSANF-40.000000 Taitien TX VCTCXO 40 MHz Clipped Sine Wave 2.8V ~ 3.3V ±500ppb
TXEAADSANF-25.000000 Taitien TX VCTCXO 25 MHz Clipped Sine Wave 2.8V ~ 3.3V ±500ppb
TYETBLSANF-38.400000 Taitien TY TCXO 38.4 MHz Clipped Sine Wave 2.8V ~ 3.3V ±1ppm
TYETBCSANF-50.000000 Taitien TY TCXO 50 MHz Clipped Sine Wave 2.8V ~ 3.3V ±1ppm
TYETACSANF-32.000000 Taitien TY TCXO 32 MHz Clipped Sine Wave 2.8V ~ 3.3V ±500ppb
TYETACSANF-20.000000 Taitien TY TCXO 20 MHz Clipped Sine Wave 2.8V ~ 3.3V ±500ppb
PYEUCJJANF-100.000000 Taitien FASTXO XO (Standard) 100 MHz CMOS 2.8V ~ 3.3V ±20ppm
TWEAALSANF-10.000000 Taitien TW VCTCXO 10 MHz Clipped Sine Wave 3.3V ±500ppb
TTETKLJANF-30.720000 Taitien TT TCXO 30.72 MHz CMOS 3.3V ±280ppb
TTEAMCSANF-10.000000 Taitien TT VCTCXO 10 MHz Clipped Sine Wave 3.3V ±100ppb
OYKTGLJANF-0.032768 Taitien OY XO (Standard) 32.768 kHz CMOS 1.8V ±50ppm
OYETDLJANF-25.000000 Taitien OY XO (Standard) 25 MHz CMOS 3.3V ±25ppm
TXETDDSANF-19.200000 Taitien TX TCXO 19.2 MHz Clipped Sine Wave 2.8V ~ 3.3V ±2.5ppm
TXETCLSANF-25.000000 Taitien TX TCXO 25 MHz Clipped Sine Wave 2.8V ~ 3.3V ±2ppm
